overall dimensions(LxWxH): 43mm x 155mm x 0.33mm luminous dimensions(LxW): 40mm x 147mm backlight EL-lamp for LCD display Optrex DMF5005 backlight EL-lamp for LCD display AND AND711A backlight EL-lamp for LCD display Toshiba TLX 711A backlight EL-lamp
0,00 TL
-

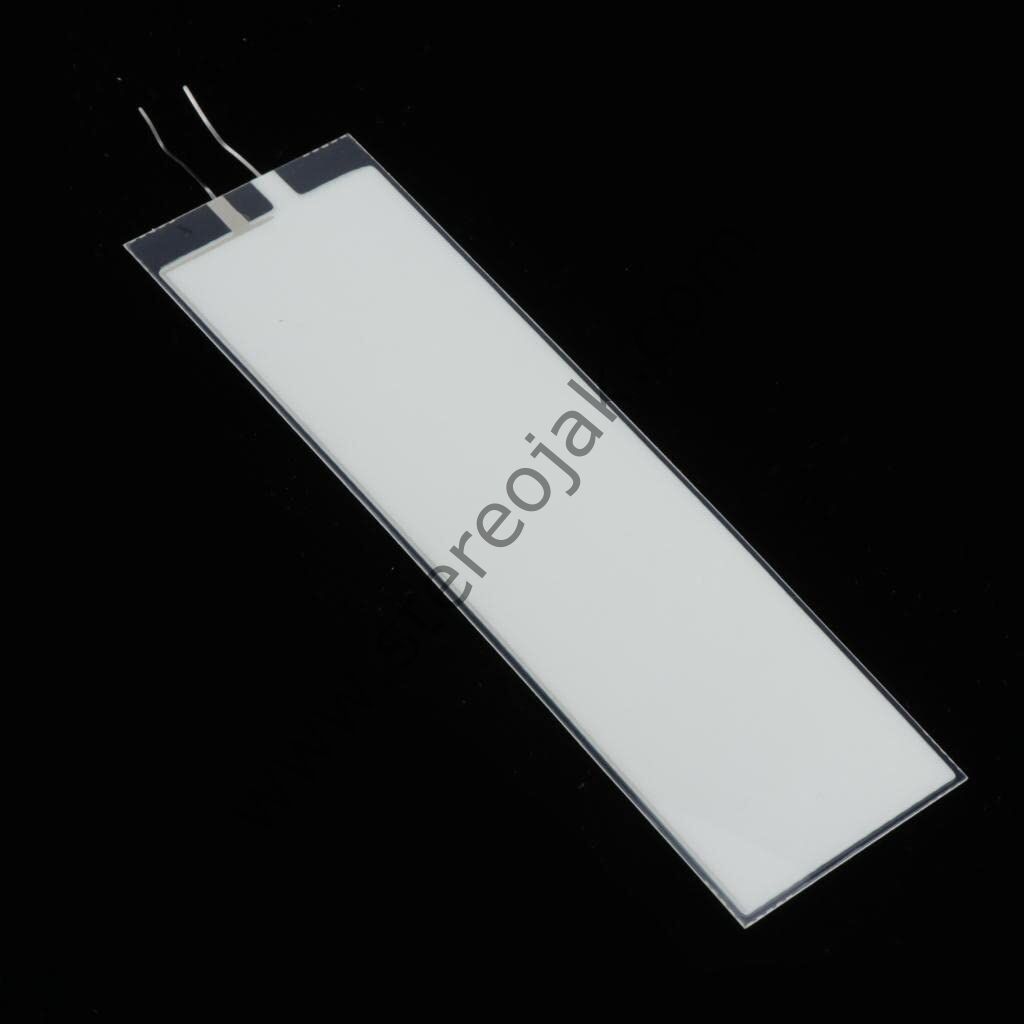

overall dimensions(LxWxH): 43mm x 155mm x 0.33mmluminous dimensions(LxW): 40mm x 147mm
-
-
high quality EL-panel with light off colour: grey and light on colour: blue-green
- all around lamination by factory for proper protection
- 2 solderable contacts
- overall dimensions(LxWxH): 43mm x 155mm x 0.33mm
- luminous dimensions(LxW): 40mm x 147mm
- lifetime >3000 hrs = 50% of initial brightness, useful lifetime >10.000 hrs
- luminance ~ 10 cd/m2 (depends on voltage and frequency of inverter)
- EL-panel can be cut by scissors if you need a smaller luminating area
- watch the attached backlight exchange manual from below how to replace the EL-panel yourself
- shipping in a stiff and stable box to prevent a buckling of the EL-panel for a safe transport worldwide
 |
 |
Main applications
-
backlight EL-lamp for LCD display Optrex DMF5005
- backlight EL-lamp for LCD display AND AND711A
- backlight EL-lamp for LCD display Toshiba TLX 711A

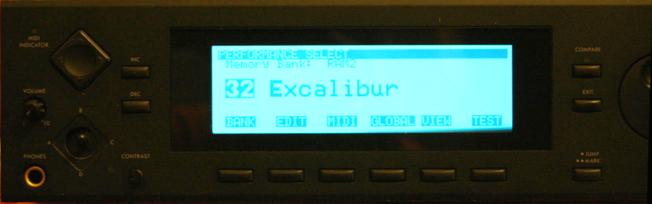

- backlight EL-lamp for display of Korg 01 R/W
- backlight EL-lamp for display of Korg 01 WFD
- backlight EL-lamp for display of Korg i3
- backlight EL-lamp for display of Korg T1
- backlight EL-lamp for display of Korg T2
- backlight EL-lamp for display of Korg T3
- backlight EL-lamp for display of Korg Wavestation A/D
- backlight EL-lamp for display of Korg Wavestation EX
- backlight EL-lamp for display of Korg Wavestation M1
- backlight EL-lamp for display of Korg Wavestation WS1
- backlight EL-lamp for display of Korg Wavestation WSA/D
- backlight EL-lamp for display of Roland A-50
- backlight EL-lamp for display of Roland A-80
- backlight EL-lamp for display of Roland D-70
- backlight EL-lamp for display of Roland GC-8
- backlight EL-lamp for display of Yamaha DEQ 5
- backlight EL-lamp for display of Yamaha QS300
- backlight EL-lamp for display of Yamaha SY-77
- backlight EL-lamp for display of Yamaha SY-99
- backlight EL-lamp for display of Yamaha W5
- backlight EL-lamp for display of Yamaha W7
- other replacement applications and machines
- ultra small and flat lighting applications
-
blue-green night light
- design and art objects
- light spots
- emergency lights
