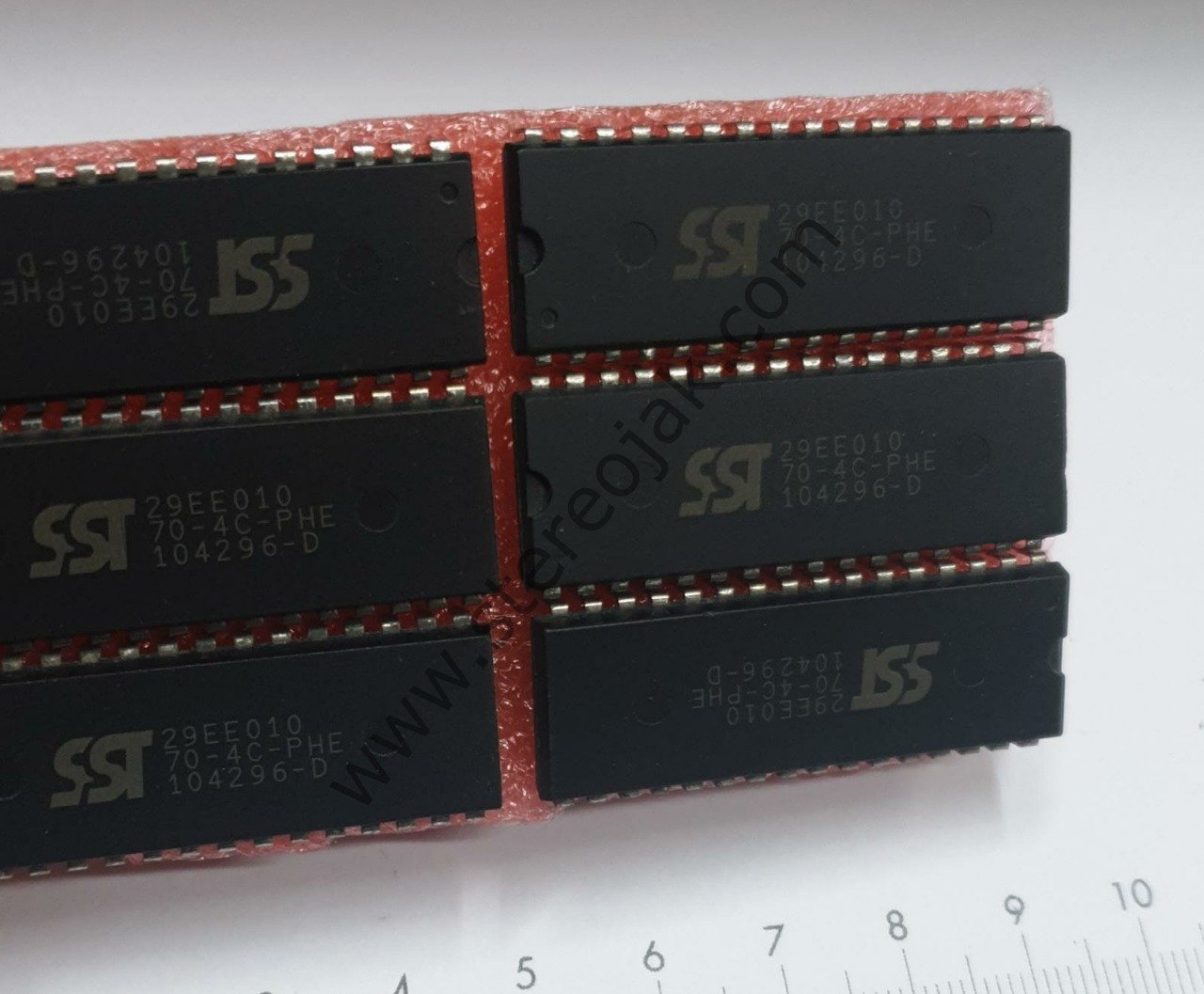

SST29EE010-70-4C-PHE IC DIP-3229EE010 70-4C-PHE 104296-D

FEATURES:

•Single Voltage Read and Write Operations– 5.0V-only for SST29EE010– 3.0-3.6V for SST29LE010– 2.7-3.6V for SST29VE010

•Superior Reliability– Endurance: 100,000 Cycles (typical)– Greater than 100 years Data Retention

•Low Power Consumption– Active Current: 20 mA (typical) for 5V and10 mA (typical) for 3.0/2.7V– Standby Current: 10 µA (typical)

•Fast Page-Write Operation– 128 Bytes per Page, 2048 Pages– Page-Write Cycle: 5 ms (typical)– Complete Memory Rewrite: 10 sec (typical)– Effective Byte-Write Cycle Time: 39 µs (typical)

•Fast Read Access Time– 5.0V-only operation: 120 and 150 ns– 3.0-3.6V operation: 200 and 250 ns– 2.7-3.6V operation: 200 and 250 ns

 SST29EE010-70-4C-PHE SST29EE010 IC  DIP-32  *  1
