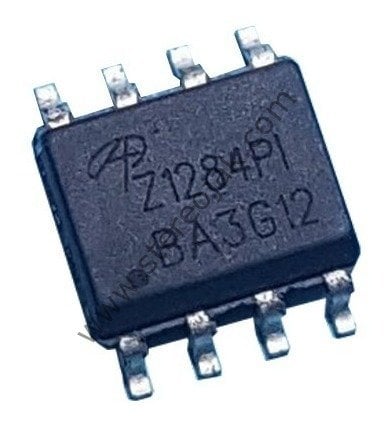

Z1284PI (AOZ1284PI) EZBuck™ 4A Simple Buck Regulator
Kategori
Stok Kodu
AKMRU289
Fiyat
3,75 USD + KDV
161,22 TL den başlayan taksitlerle!!
161,22 TL
General Description
The AOZ1284 is a high voltage, high efficiency,
simple to use, 4A buck regulator optimized for a
variety of applications. The AOZ1284 works from a
3.0V to 36V input voltage range, and provides up to
4A of continuous output current. The output voltage
is adjustable from 30V down to 0.8V. General Description
The AOZ1284 is a high voltage, high efficiency,
simple to use, 4A buck regulator optimized for a
variety of applications. The AOZ1284 works from a
3.0V to 36V input voltage range, and provides up to
4A of continuous output current. The output voltage
is adjustable from 30V down to 0.8V.
The AOZ1284 integrates an N-channel high-side
power MOSFET. The switching frequency can set
from 200kHz to 2MHz with an external resistor. The
soft-start time can be set with an external capacitor.
Features
3.0V to 36V operating input voltage range
50mΩ internal NMOS
Efficiency up to 95%
Adjustable soft-start
Output voltage adjustable from 0.8V to 30V
4A continuous output current
Adjustable switching frequency from 200kHz to
2MHz
Cycle-by-cycle current limit
Short-circuit protection
Over-voltage protection
Over-temperature protection
EPAD SO-8 package
Applications
Point of load DC/DC conversion
Set top boxes and cable modems
Automotive applications
DVD drives and HDDs
LCD Monitors & TVs
Telecom/Networking/Datacom equipmentGeneral Description
The AOZ1284 is a high voltage, high efficiency,
simple to use, 4A buck regulator optimized for a
variety of applications. The AOZ1284 works from a
3.0V to 36V input voltage range, and provides up to
4A of continuous output current. The output voltage
is adjustable from 30V down to 0.8V.
The AOZ1284 integrates an N-channel high-side
power MOSFET. The switching frequency can set
from 200kHz to 2MHz with an external resistor. The
soft-start time can be set with an external capacitor.
Features
3.0V to 36V operating input voltage range
50mΩ internal NMOS
Efficiency up to 95%
Adjustable soft-start
Output voltage adjustable from 0.8V to 30V
4A continuous output current
Adjustable switching frequency from 200kHz to
2MHz
Cycle-by-cycle current limit
Short-circuit protection
Over-voltage protection
Over-temperature protection
EPAD SO-8 package
Applications
Point of load DC/DC conversion
Set top boxes and cable modems
Automotive applications
DVD drives and HDDs
LCD Monitors & TVs
Telecom/Networking/Datacom equipment
